• Compact & Customised Linear Actuator
• Dynamic Load Ratings up to 10kN
• Linear Speeds up to 5500 mm/min
• Machine Screw & Ball Screw
• 3-Phase AC, 1-Phase AC & DC Types
• Special Custom Designs Available

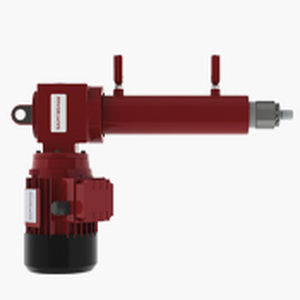

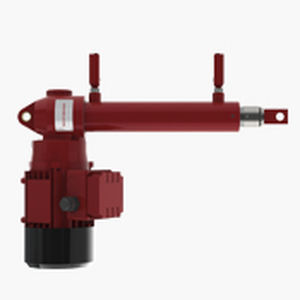

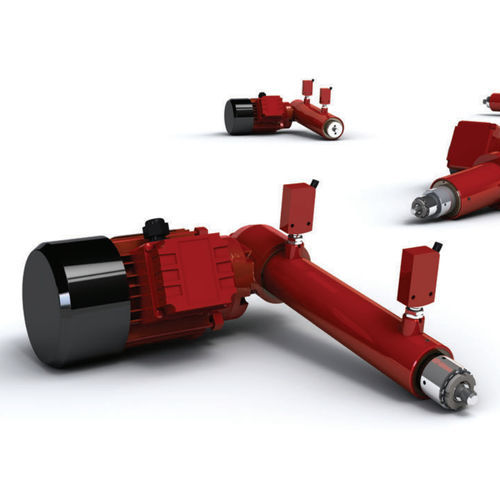

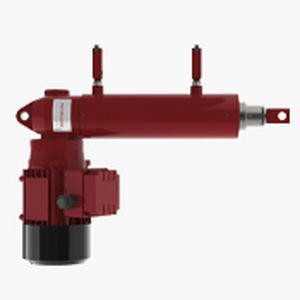

The Electro Mechanical Actuators (EMA Linear Actuators) typical Applications include tilt/pivot, lift/lower, position, roll/slide, open/close, tension and lock/unlock. Used across many sectors from defence, nuclear, food processing and material handling such as plastics and rubber.

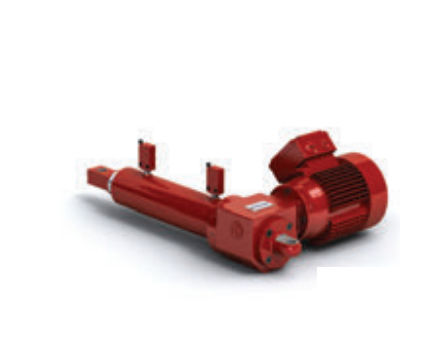

There are 3 standard EMA linear actuator models, all available in a right-angle drive configuration.
I = Intermittent duty model, incorporating a trapezoidal screw
C = Medium duty model, incorporating a ball screw
H = High speed & medium duty model, incorporating a ball screw
• Choice of AC or DC motor types
• Range of end fittings: Clevis, Fork Clevis, Top Plate or Screwed End
• Trunnion mounting
• Limit Switches
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
electric
|
| Motor |
DC, AC
|
| Applications |
handling
|
| Other characteristics |
|
| Stroke (mm) |
900 - 1250
|
| Force (N) |
5 - 10
|
| Motor power |
250 W, 370 W, 550 W (0 hp)
|
| Ambient temperature |
Max.: 50 °C (122 °F)Min.: -10 °C (14 °F)
|
